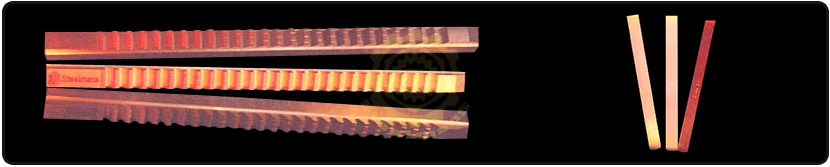

| Steelmans American Standard Keyway Broaches (Shims Included) | ||||||
|---|---|---|---|---|---|---|
| STM No. | Broach Size | Tolerance | Tooth Pitch | No.of Teeth | Shims Req’d | Broach Dim. |
| 0201 | 1/16-A | .0625-.0635 | 3/16 | 18 | 0 | 1/8 X 5 |
| 0210 | 3/32-A | .0938-.0948 | 3/16 | 18 | 0 | 1/8 X 5 |
| 0219 | 1/8-A | .1252-.1262 | 3/16 | 18 | 1 | 1/8 X 5 |
| 0.228 | 3/32-B | .0937-.0947 | 9/32 | 16 | 0 | 3/16 X 7 |
| 0237 | 1/B-B | .1252-.1262 | 9/32 | 16 | 1 | 3/16 X 7 |
| 0246 | 5/32-B | .1564-.1574 | 9/32 | 16 | 1 | 3/16 X 7 |
| 0255 | 3/16-B | .1877-.1887 | 9/32 | 16 | 1 | 3/16 X 7 |
| 0264 | 3/16-C | .1877-.1887 | 3/8 | 22 | 1 | 3/8 X 12 |
| 0273 | 1/4-C | .2502-.2512 | 3/8 | 22 | 1 | 3/8 X 12 |
| 0282 | 5/16-C | .3127-.3137 | 3/8 | 22 | 2 | 3/8 X 12 |
| 0291 | 3/8-C | .3755-.3765 | 3/8 | 22 | 2 | 3/8 X 12 |
| 0300 | 5/16-D | .3127-.3137 | 5/8 | 17 | 2 | 9/16 X 14 |
| 0309 | 3/8-D | .3755-.3765 | 5/8 | 17 | 2 | 9/16 X 14 |
| 0318 | 7/16-D | .4380-.4390 | 5/8 | 17 | 3 | 9/16 X 14 |
| 0327 | 1/2-D | .5006-.5016 | 5/8 | 17 | 3 | 9/16 X 14 |
| 0345 | 5/8-E | .6260-.6270 | 5/8 | 20 | 4 | 3/4 X 16 |
| 0354 | 3/4-E | .7515-.7525 | 5/8 | 20 | 5 | 3/4 X 16 |
| 0363 | 7/8-F | .8765-.8775 | 5/8 | 26 | 6 | 1 X 21 |
| 0372 | 1-F | 1.0015-1.0025 | 5/8 | 26 | 7 | 1 X 21 |
| Steelmans Extra Shims For Keyway Broaches | |||
|---|---|---|---|
| STM No. | Broach Size | STM No. | Broach Size |
| 0381 | 1/8-A | 0471 | — |
| 0390 | 1/8-B | 0480 | 1/2-D |
| 0399 | 5/32-B | 0489 | 5/8-E |
| 0408 | 3/16-B | 0498 | 3/4-E |
| 0417 | 3/16-C | 0507 | 7/8-F |
| 0426 | 1/4-C | 0516 | 1-F |
| 0435 | 5/16-C | 0525 | 1-1/8 |
| 0444 | 3/8-C | 0534 | 1-1/4 |
| 0453 | 5/16-D | 0543 | 1-3/8 |
| 0462 | 3/8-D | 0552 | 1-1/2 |
